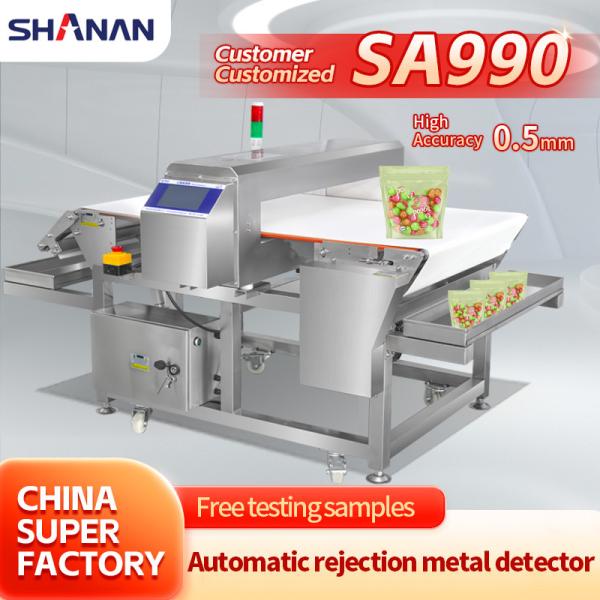

Industrial High Sensitivity Food Metal Detector With Conveyor Belt
Tunnel For Meat Bakery Snack Food
Description of Food Metal Detector:
The Industrial Food Metal Detector is a high-performance metal
detection system designed for use in food processing and packaging.
This metal detector is capable of detecting metal contaminants in a
wide range of food products, including meat, bakery, and snack
foods. The metal detector features a high-sensitivity conveyor belt
tunnel, which ensures that all food products pass through the metal
detector, regardless of their size or shape. It is designed to
provide reliable and efficient metal detection for the food
processing industry.
Application of Food Metal Detector:
Detect metal impurities in products or raw materials in the
production and processing of food, medicine, toys, clothing,
shoemaking, chemicals, leather, knitting and other industries. Such
as: iron and non-ferromagnetic metal objects (iron, copper,
aluminum, stainless steel and other non-ferrous metals can be
detected), improve product safety factor, and improve enterprise
product quality.
Product Features of Food Metal Detector:
1. The core part is carefully developed with leading digital
technology and original imported chips. The inside of the detection
coil is formed by potting at one time. It has the characteristics
of high detection accuracy, stable performance, and strong
anti-interference ability.
2. It can be produced in a variety of frequencies according to
product characteristics, and has a product testing data storage
function, which can store more than 200 product testing data and
has a wide range of applications.
3. Using intelligent recognition technology, with self-learning and
memory functions, it can automatically recognize and remember
product characteristics, and effectively eliminate the interference
caused by various "product effects".
4. Simple and friendly operation interface, using a dialogue D
display, you can quickly and conveniently set parameters through a
simple key control interface; it can detect a variety of products
containing different product signals (characteristics), and one
setting can guarantee high The detection accuracy does not need to
be re-adjusted and set up the program.
5. Modular component replacement, convenient and quick maintenance.
6. Meet the requirements of HACCP, GMP and FDA.
7. Shockproof and waterproof design, dustproof and waterproof
function in line with IP-66/IP-65 international certification,
anti-vibration and noise absorption, can adapt to harsh working
environments.
8. Various reject devices (such as flaps, air blows, push rods,
etc.) and a lightweight, large-package special and heavy-duty body
design can be adopted according to user needs.
Product Parameters
Food Metal Detector Parameters
Model | SA-990 |
Machine length (mm) | 1330~2000 (can customize) |
Detection tunnel width (mm) | 200~1200 (can customize) |
Detection tunnel height (mm) | 50~1000 (can customize) |
Standard detection sensitivity | FE(Φmm) | ≥0.5 |
NON-FE(Φmm) | ≥0.8 |
SUS304(Φmm) | ≥1.0 |
Protection level | IP67 |
Number of memory products | 200+ kinds |
Display mode | Touch Screen |
Operation mode | Touch button input |
Alarm mode | Alarm stop, buzzer alarm or rejector device optional |
Machine material | Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other
standards |
Conveyor belt material | Food grade PVC or PU belt |
Machine weight | About 280KG |
Motor | 90~370W |
Transfer speed | 10-28m/min (optional and adjustable) |
Power supply | AC220V±10%, 50-60HZ (Customize AC110V or AC380V) |
Belt height above the ground (mm) | 700+100 (can customized) |
Maximum load (single piece) | 10~50KG (can customized) |
Using environment | Temperature: -15ºC~40ºC, relative humidity: 30~85RP |
Detailed Photos
