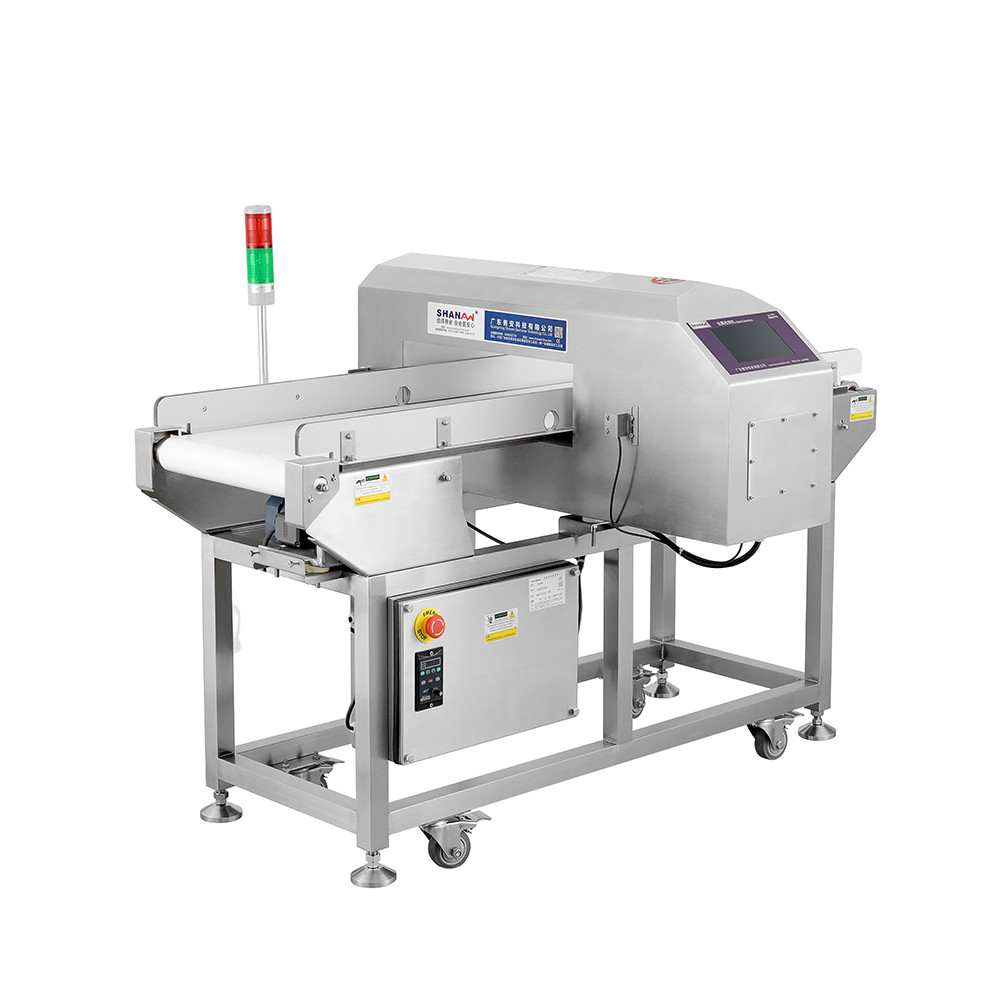

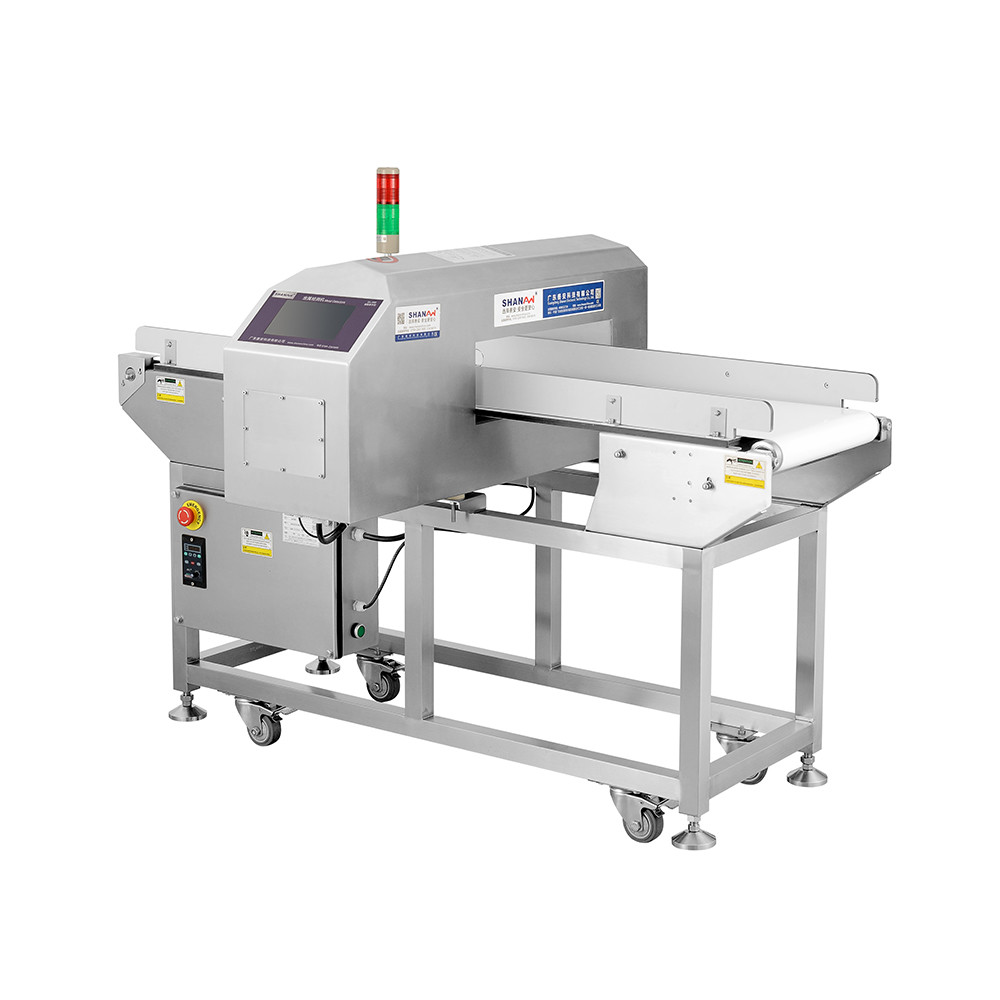

Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings

GUANGDONG SHANAN TECHNOLOGY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings from wholesalers

    Buy cheap Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings from wholesalers
    • Buy cheap Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings from wholesalers
    • Buy cheap Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings from wholesalers

    Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : SR-001
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings

    New Technology Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector


    About Shanan.pdf


    Machine specification

    Detection Width

    (mm)
    400300 customized
    Detection Height
    (mm)
    100120150200250300350400
    Detection
    Sensitivity
    Fe(Φmm)≥0.6≥0.8≥1.0≥1.2≥1.5≥2.0≥2.5≥3.0
    Non-Fe(Φmm)≥1.0≥1.2≥1.5≥2.5≥3.0≥3.5≥4.0≥4.5
    304Sus(Φmm)≥1.2≥1.5≥2.0≥2.5≥3.0≥3.5≥4.0≥4.5
    Alarm and rejector systemAutomatic stop by alarm and sound or push rod or falling drop
    Machine structureFull structure takes of stainless 304
    Machine size (mm)
    L1520mm×W830mm×H1100mm
    if customized it will according to customized size
    Machine weightAround 250KG if customized the weight will different
    Voltage and power220V 50Hz 90W
    Load ability of belt
    5-25KG
    conveyor belt running speed:25-30m/min or customized various
    Height of line750mm±50mm can customized
    Note :Normal size machine have stocks. Unnormal size machine have to customized

    • Tech informations
    • Identify a variety of magnetic and non-magnetic metals like iron, stainless steel, aluminum, etc. even if the metal contained in the food products.
    • Adopt the-double-circuit signal detection make it high sensitible and strong anti-disturbance.
    • With the double circuit signal demonstration function: When the metal good is passing, the signal light will demonstrate different inductions according to the size of the metal objects.
    • With the adjustment function of products effect such as moist products and products including sugar or salt, they all can make the machine create a signal from metal, which is actually has no metal in it, so it gets wrong information from the products and affects the detection result. So it can reduce the products’ effect to get better detection result via using this machine with this function.
    • Get rid of missing detection. When there are several metal signals passing, the machine will automatically record the signal amount, therefore it won’t have miss detection results.
    • Control system: Controled by ADLINE microprocessor.
    • Conveyors: PU (polyurethane) or PVC food grade conveyor.
    • Special transport mechanism designed can maximize the sensitivity of metal detectors.
    • Flexible modular design can be customized according to different requirements .
    • Easy for workers to clean because of mirror stainless steel with open transport system. .
    • Conveyer belt meet FDA standards.
    • Meet the requirements of IFS and HACCP certificates. There are a variety of options to exclude institutions depending on the application



    Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns DumplingsHot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns DumplingsHot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns DumplingsHot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings




    Our service:

    If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

    Onsite Service:

    1. Device installation;

    2. Equipment Operation Test Technology training;

    3. Equipment Calibration;

    4. Daily maintenance and maintenance of equipment


    Free technical training for visiting factories

    24-hour Online contact

    Free software upgrades

    Free information:

    1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)


    Device Problem Handling:

    1. Social media 24 hours online communication;

    2. Mail Seamless Docking;

    3. Video Conferencing;
