    Gravity Fall Metal Detector Separator For Plastic Industry / Industrial Metal Detector

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VMD series
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Delivery Time : 15work days
    Supply Ability : 100 set/month
    • Product Details
    • Company Profile

    Gravity Fall Metal Detector Separator For Plastic Industry / Industrial Metal Detector

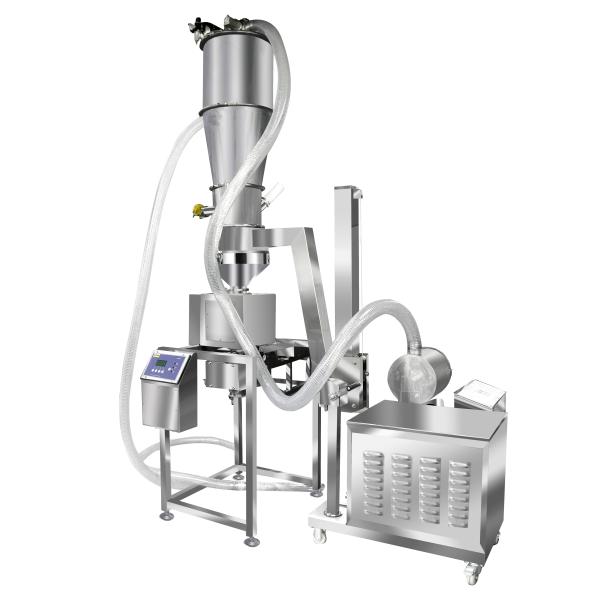

    Pipeline Metal Separator Machine for Plastic Industry with Feeder Made in China

    V FINDER metal separator is used for detecting and separating metal contamination that are mixed with plastic raw materials, including magnetic metal or non-magnetic metal ( such as copper,aluminum and stainless steel etc.). Since metal may mix with the old waste materials in the process of recycling, which eventually will cause production accidents, increase the times of maintenance and repair. Those problems finally will raise the cost and affect production efficiency. Compared with human feeding, vacuum feeding machine can automatically feed, thus can save labor cost, and it suits for customers with big production requirements. Besides, this product has good quality, a strong suction and reliable. And automatic feeding can be realized.



    Application:

    • Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .

    Gravity Fall Metal Detector Separator For Plastic Industry / Industrial Metal Detector
    Gravity Fall Metal Detector Separator For Plastic Industry / Industrial Metal Detector

    Advantages
    1. Protect production device;
    2. Enhance production efficiency;
    3. Improve the availability of raw material;
    4. Enhance product’s quality;
    5. Reduce the expense of maintenance and shuts-down;


    Technical Parameters:

    ModelVF-25VF-35VF-50VF-70VF-100

    detecting passage

    (mm)

    Φ25mmΦ35mmΦ50mmΦ70mmΦ100mm

    Minimum detectable

    (mm)

    Φ0.2mmΦ0.3mmΦ0.5mmΦ0.7mmΦ1.0mm
    Maximum throughput250KG/HR300-400 KG/HR700-800 KG/HR1000-1500 KG/HR2000-2500 KG/HR
    Working voltage220V/50~60Hz220V/50~60Hz220V/50~60Hz220V/50~60Hz220V/50~60Hz
    Environment temperature-10~+80℃-10~+80℃-10~+80℃-10~+80℃-10~+80℃

    Disposal time

    (adjustable)

    0.3-5seconds0.3-5seconds0.3-5seconds0.3-5seconds0.3-5seconds

    Compressed

    air

    3~5Bar3~5Bar3~5Bar3~5Bar3~5Bar

    L*W*H

    (mm)

    318X230X326318X230X326318X230X326378X270X350

    390X280X385


    Features:
    1. Collection of detection coil, controller, separation device. Easy to operate and install.
    2. It can save losses of material, because rejection board rapidly rejects unqualified material
    3. Low height of installation, easy for integrity;
    4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
    5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
    6. Controller can be installed around detection place about 10m.
    7. Protection level: IP65
    8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.


    Packing details:

    Gravity Metal Separator Free Fall Metal Separator for Plastic Industry Package:
    1. Plastic wrap moisture
    2. Fixed on the bottom of the wooden box
    3. Standard export wooden box packaging, reinforcement







    What is the order process?

    Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
