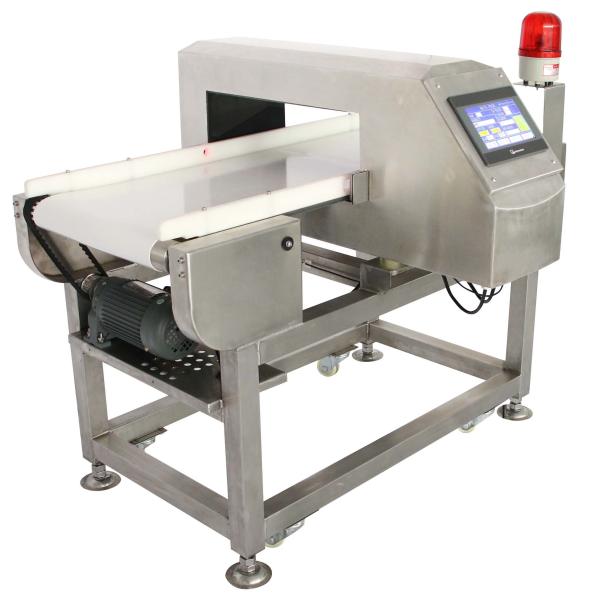

    Digital Metal Detector For Food Processing Industry / Metal Detector For Food

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VDF
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Digital Metal Detector For Food Processing Industry / Metal Detector For Food

    Conveyor Belt Food Security Metal Detector For Food Industry / Food Metal Detector


    QUICK TO KNOW


    You could customize a tunnel size that could meet your needs:


    Model
    VDF series
    Machine specification
    Normal machine
    Customized width
    (mm)
    Detection Width
    400
    300 customized
    (mm)
    Detection Height
    100
    120
    150
    200
    250
    300
    350
    400
    Detection
    Sensitivity
    Fe(Φmm)
    ≥0.6
    ≥0.8
    ≥1.0
    ≥1.2
    ≥1.5
    ≥2.0
    ≥2.5
    ≥3.0
    Non-Fe(Φmm)
    ≥1.0
    ≥1.2
    ≥1.5
    ≥2.5
    ≥3.0
    ≥3.5
    ≥4.0
    ≥4.5
    304Sus(Φmm)
    ≥1.2
    ≥1.5
    ≥2.0
    ≥2.5
    ≥3.0
    ≥3.5
    ≥4.0
    ≥4.5
    Alarm and rejector system
    Automatic stop by alarm and sound or push rod or falling drop
    Machine structure
    Full structure takes of stainless 304
    Machine size (mm)
    L1520mm×W830mm×H1100mm
    if customized it will according to customized size
    Machine weight
    Around 250KG if customized the weight will different
    Voltage and power
    220V 50Hz 90W
    Load ability
    5-25KG
    conveyor belt running speed:25-30m/min or customized various
    Height from the earth
    650mm±50mm can customized
    Note :Normal size machine have stocks. Unnormal size machine have to customized

    Discription:

    1. Adopt the theory of balance, more reliable;

    2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

    3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

    4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

    5. Large D display with Chinese & English language and so on; Consumer can choose according to their needs.

    6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.

    7. It can store more than 100 kinds of testing data of products.

    8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.

    9. Suitable for wet, dry, dust, dew environment, made of stainless steal, has HACCP attestation, waterproof IP65


    Digital Metal Detector For Food Processing Industry / Metal Detector For Food


    Certificate:



    How does the metal detector system run


    1.The three coils are wound completely parallel on the non-metallic frame.


    2. The center coil is connected to a high frequency radio transmitter.


    3. Two transmission-receiving coils sit on either side of the center coil.


    4. They receive the same signal and produce an identical, balanced output voltage because the two outer coils are identical and the exact same distance from the center.


    5. When a particle of metal passes through the system:

    The high-frequency field is disturbed beneath one coil, changing the voltage and disrupting the balance.


    The output fluxes from zero, producing a signal alerting the system to the presence of metal.

    Depending on the specifics of the system, a rejection mechanism is generally activated, with the ideal result of removal of 100 percent of the metal and a minimum amount of salable product.
