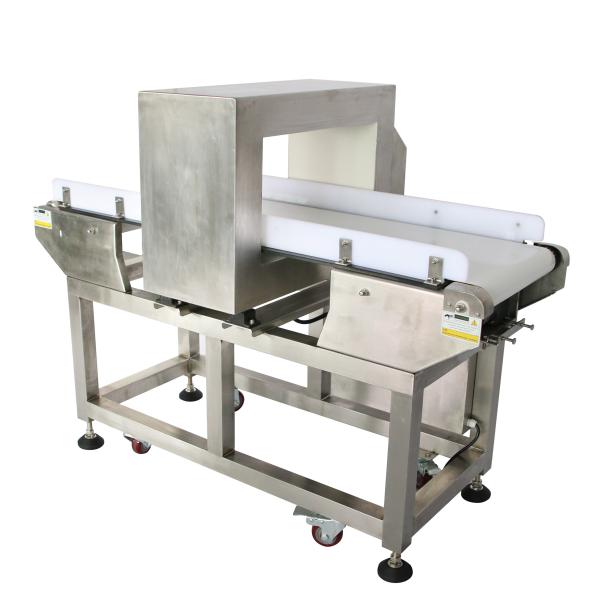

AD Conveyor Metal Detector / High Sensitivity Metal Detector Food
Grade Belt
The equipment must achieve following detais:
- Sensitivity must be stable and require infrequent adjustment
- Not reject good product or provide false positive results
- Be capable of detecting metal in various orientations relative to
the detection head
- Be important to work with your equipment supplier in determining to
and establishing these condictions.
- Sensitivity levels must be realistic and attainable and your
supplier will be best placed to provide guidance.
QUICK TO KNOW
Specification:
| Detection width : | 30-80 cm, Customized |
| Detection height: | 8-50cm Customized |
| Detection sensitivity: | See below table |
| Alarm mode: | The buzzer alarm, the motor automatically stop |
| Transfer speed: | 25 meter / min or you can select adjust speed |
| Power: | 100-265VAC, 50-60Hz (According to customer request) |
| Size: | (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) |
| Reject system | Option |
The reality detector sensitivity depends on the products and
operating environment
Please kindly see below:
Detected Height (mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
| Belt Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
| Belt length | 1500 |
Detector sensitivity (mm) | Fe 0.8 | Fe 1.0 | Fe 1.2 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 |
| SUS 1.0 | SUS 2.0 | SUS 2.5 | SUS 2.5 | SUS 3.0 | SUS 3.5 | SUS 4.0 |
| N-Fe 1.0 | N-Fe 1.5 | N-Fe 2.0 | N-Fe 2.0 | N-Fe 2.5 | N-Fe 3.0 | N-Fe 3.5 |
| Speed of belt | 25M/min (Fixed speed) ; If you need adjust 5-40 M/min , please inform us before order |
| Load ability | 20KG |
| Count | 100 |
| Warning method | Sound and light alarm; The belt can be stopped, continue run or
belt return ( option ) |
| Reject Ways | when has auto-reject system ,belt continue and rejecting the goods |
| Application | Non-package ,plastic package ,paper bag or box (non-metallic)
product |
| Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% |
Description:
High Sensitivity Metal Detector is new arrival food metal detector:
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to
effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process
testing data of detection signal,
which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the
detector handles many operations.
Easy to adjust the detecting parameters.
5. Large D display with Chinese & English language and so on;
Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally
learn and store product’s features.
Easy to operate without manual participation to adjust technical
parameters.
7. It can store more than 100 kinds of testing data of products.

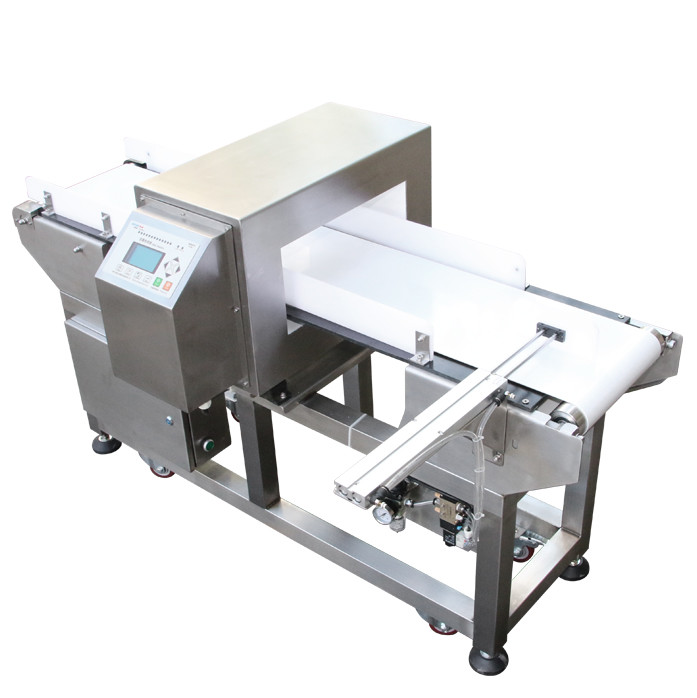

8. Automatic rejection system can be customized according to
consumer’s requirements,
which can improve production efficiency and save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless
steal ,has HACCP attestation , waterproof IP65
The considerations on purchasing a metal detector:
Determine the types of metal that need to be tested. There are two
main types of metals: ferrous and non-ferrous. The ferrous metal
comes from iron. Non-ferrous metals are all others. Carefully
inventory the types of metals that may eventually appear in your
product. |
What size of metal contaminants do you need to filter? For this
problem, you need to be pragmatic and realistic, because if you
specify too much sensitivity, you will get too many false alarms
and vice versa. |
Understand the operating environment and product characteristics -
The operating environment includes temperature and whether water,
dust or chemicals may come into contact with metal detectors and
possible electric fields. In addition, is the product fresh or
frozen, and the package is still exposed, scanned separately or in
a box? All of these factors will be used to design the metal
detector that best meets your needs. |
Reject System Considerations - The most common way is to use a
propeller or blower to transport metal detection products. However,
you can save space by stopping the conveyor and starting the
warning light. Further more, an optional lockable collection
container prevents unauthorized employees from accessing rejected
products.
|
FAQ:
1. Are your company a trading one or a factory ?
Factory + trade (integration).
2. How to choose the most suitable products?
Our professional team will give you the best suggestion as long as
you tell us
what kind of test you need to do and the required specification.
3. What’s the delivery term?
At most of time, we have stock in the factory. It will takek 1-3
working days to ship to the forwarder.
If there is no stock, normally, the delivery time is 15-20 working
days after deposit receipt.
If you are in urgent need, we can consider making special
arrangement for you.
