Brand Name : | SHANAN |
Model Number : | VFG-600k |
Certification : | CE, ISO |
Price : | negotiation |
Payment Terms : | T/T |
Supply Ability : | 100 set/month |
Delivery Time : | 15work days |
Technical details:

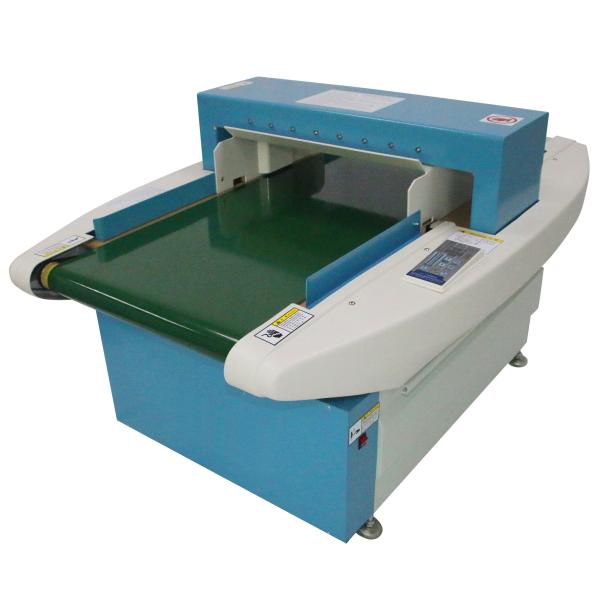

Name | Needle detector |
Model | VFG-600K |
Detection tunnel size | Width: 600mm height: 150mm |
Tunnel type | Horizontal |
Detection ability | Ferrous, magnetic metals and broken needles |
Speed of conveyor belt | 20m/min ( Other speed optional, adjustable speed optional) |
Metal detector total length | 1650mm (Other optional) |
Operation language | English (Other languages optional) |
Conveyor belt | Green color PVC |
Height from floor to conveyor belt | 700+-50 mm (Other optional) |
Rejection system | Buzzer alarms and belt stops / Buzzer alarms and return back |
Power Supply | 220V 50Hz(Other optional) |
Frame material | Carbon steel |
Ingress rating | IP54 |
HS code | 9031809090 |
Applied industries:
Garments, Fabrics, Apparels, Textiles, Cloths, Shoes, Suits,
Trousers, Socks,etc.
Product function:
Identifying whether there are any undesirable metallic substances
and broken needles left-over or embedded in the garment and
accessories in manufacturing and sewing process.
Features:
1. 32 bit digital computer chipes with latest workmanship and
technology
2.Auto shutdown energy saving mode after no detection for more than
10 minutes
3. 8 points positioning technology enabling to find out specific
location of borken needles
4. Counting function for a better production management
5. Excellent anti-interference design with good detection stability
6. Printing function for production management
Technical parameter:
Inspection width | Inspection height | Inspection standard | Volume/mm | Approx weight | Power | Voltage |
400mm | 120mm | Fe≥Φ0.8mm | 1580*980*890 | 180kg | 60W | AC220V/50HZ |
160mm | Fe≥Φ1.0mm | 1580*980*930 | ||||
190mm | Fe≥Φ1.2mm | 1580*980*960 | ||||
230mm | Fe≥Φ1.5mm | 1580*980*1000 |
Inspection width | Inspection height | Inspection standard | Volume/mm | Approx weight | Power | Voltage |
600mm | 120mm | Fe≥Φ0.8mm | 1580*980*890 | 180kg | 60W | AC220V/50HZ |
160mm | Fe≥Φ1.0mm | 1580*980*930 | ||||
190mm | Fe≥Φ1.2mm | 1580*980*960 | ||||
230mm | Fe≥Φ1.5mm | 1580*980*1000 |
P.S. The inspection width and height can be customized.
![]() |
