Automatic Alarm Airport X-Ray Baggage Security Scanner Machines X
Ray Baggage Scanning Inspection
Advantages :
1. With equipment to save electricity
2. Famous brand spare parts:
(1). Spellman brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
Feature:
Alarm by sounds & light:Alarm by sounds and light when conform to condition.
Network interface:Could be connect local area network and support multi-terminal
check baggage at same times
Safety ray:Transmit ray under automatic control, avoids the miss
Image monitoring for user-friendly:The monitor use fold, rotary system, operators adjusts the monitor
position willfully according to own need, reduces wearily.
Simple operation by mous:Without keyboard and work table, control by mouse, save space.
Turn off by a key control:Turn off the machine only need one step, revolves the key. The equipment automatic security close-down, does
not need complex many steps, is simpler.
Eagle-eye:Could be expediently observing enlargement area.
Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the
maintenance.
Advantages
1. With equipment to save electricity
2. Famous brand spare parts:
(1). Spellman brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
Unique System
- The embedded operating system
- Multi-core ARM, simple structure
- Low power consumption
- Energy saving and environmetal protection
- Real-time status monitoring function
Product Certification
● Strict quality internal control , double-check principles of
engineering and production
● Safeguard measures for machine parts
● Through the testing by Ministry of public security and police use
electronic product quality testing center
● Through the EU CE certification
● Through the ISO9001 quality management system certification
● Through the ISO14001 environmental management system
certification
● Through the GB/T28001 occupation health and safety management
system certification
● Through thes provincial Environmental Protection Department of
radiation safety certification
● Through the provincial occupation health inspection center
detection of radiation
● Through the the people's Republic of China State Bureau of
copyright of computer software copyright registration certificate
● Double soft certification
Image Processing System
X-ray sensor | L-shaped photodiode array detector (single energy), 12bit depth |
Monitor | high resolution 19 inch D BenQ monitor |
Color image display | 24-bit true color display |
Edge Enhancement | the outline of objects will be more clear |
Super Image Enhancement | the details of the image are more clear |
High penetration display | improve image contrast in bright areas, so the easy penetrating
area will be more clear |
Low penetration display | improve image contrast in dark areas, so the difficult penetrating
area will be more clear |
Magnifier local | amplification function |
Brighten / darken | Increase / decrease image brightness |
Image pull back / front pull | Show the top 20 images, and the current image can be any image
processing |
Image Restoration | Restored to its original state |
Image Storage | Real-time save any image, any image can be processed arbitrarily
,continuous work to save |
By size | 500(W)×300(H)mm |
Conveyor speed | Hour detection 600ps / h toy shoes products 0.22m/s |
Load | 150 kg |
Resolution | ∮0.0787 mm |
Conveyor height from the ground | 700mm |
Penetration | ≥8mm |
Monitor | BenQ 19in D monitor |
Storage | 500G hard drive to save any image in real time, can store more than
100,000
and can make any image processing, and continuous work to save. |
Noise | ≤55dB(A) |
Operating system | windowsXP |
Single check dose | One-time inspection of the X-ray light source irradiation amount ≤
1.22uGy |
Leaking radiation dose rate | Away from any device outer surface of 5cm, the ray irradiation leak
rate should
be ≤ 0.12uGy / h |
Dimensions | (L) 1750mm (W)730mm(H)1200mm |
NW / GW | 280 kg / 350 kg |
Drugs and explosive function
The technology we use for x-ray machine detecting explosive and
drug is according to:
Explosives and drugs equivalent atomic number Zeff among 7.8.9
Equivalent atomic number Zeff substance:
7 = water, plastic explosive
8 = impure drug and explosive
9 = pure drug
Our machine can alarm for the suspicious objects similar to the
Zeff substance.

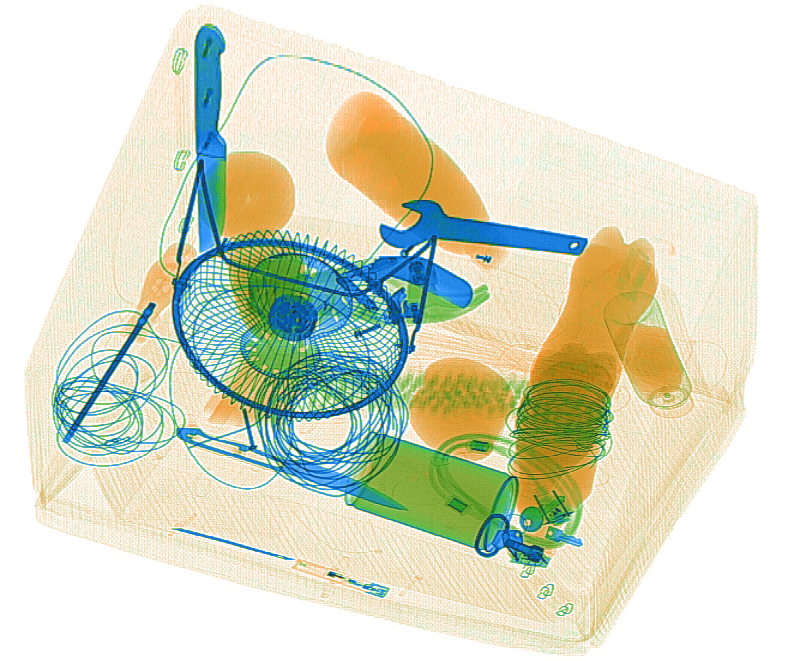

For the scanning image, we use red line selection the meterial
can't penetrate, yellow line selection the explosive, green line
selection the drug.
And the same time, the alarm LED light on the entrance of scanner
will on lighting with sound.
Applications
Designed for small mail parcel security check, primarily serves the
post Express Logistics Center of small parcel safety testing
centers
