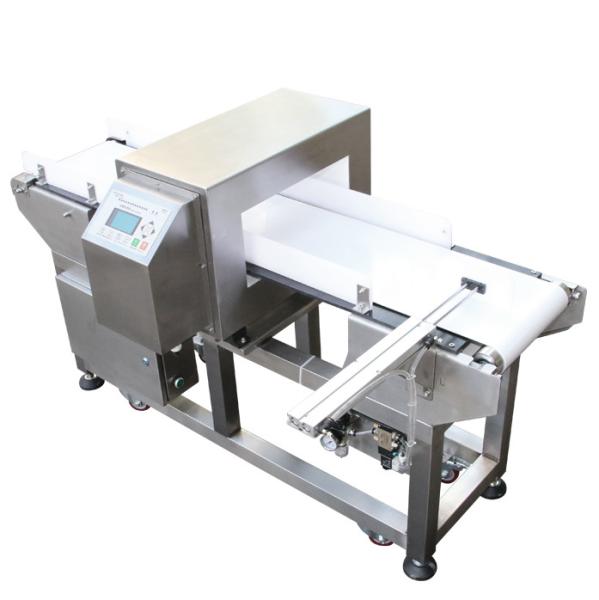

FDA Belt Conveyor Metal Detector For Food Detection Industry 220v
Scope of application:
FDA Belt Conveyor Metal Detector are mainly used for the detection
and inspection of metal impurities in food. Widely used in meat,
frozen meat, fungi, candy, mushrooms, seafood, salt, beverages,
food, fruits and vegetables, dairy products, aquatic products,
health products, additives and condiments. Can also detect rubber,
plastic, textiles, leather, chemical fiber, toys, medicine, health
products, biological products, cosmetics, gifts, packaging, paper
products, etc.
Specification:
| Detection width : | 30-80 cm, Customized |
| Detection height: | 8-50cm Customized |
| Detection sensitivity: | See below table |
| Alarm mode: | The buzzer alarm, the motor automatically stop |
| Transfer speed: | 25 meter / min or you can select adjust speed |
| Power: | 100-265VAC, 50-60Hz (According to customer request) |
| Size: | (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) |
| Reject system | Option |
FDA Belt Conveyor Metal Detector sensitivity depends on the
products and operating environment . Please kindly see below:
| Detected Height(mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
| Belt Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
| Belt length | 1500 |
Detector sensitivity(mm) | Fe 0.8 | Fe 1.0 | Fe 1.2 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 |
| SUS 1.0 | SUS 2.0 | SUS 2.5 | SUS 2.5 | SUS 3.0 | SUS 3.5 | SUS 4.0 |
| N-Fe 1.0 | N-Fe 1.5 | N-Fe 2.0 | N-Fe 2.0 | N-Fe 2.5 | N-Fe 3.0 | N-Fe 3.5 |
| Speed of belt | 25M/min (Fixed speed) ; If you need adjust 5-40 M/min , please inform us before order |
| Load ability | 20KG |
| Count | 100 |
| Warning method | Sound and light alarm ; The belt can be stopped, continue run or
belt return ( the option you can selected in P controller) |
| Reject Ways | when has auto-reject system ,belt continue and rejecting the goods |
| Application | Non-package ,plastic package ,paper bag or box (non-metallic)
product |
| Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% |
Description:
FDA Belt Conveyor Metal Detector
is new arrival food metal detector . It has touch screen , 10 level
adjustable sensitivity and
memory 10 kinds of products etc .But also it has more higher
reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to
effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process
testing data of detection signal, which can enhance detection
efficiency.
4. To stop mistaking in transmission & reception in advance, the
detector handles many operations. Easy to adjust the detecting
parameters.
5. Large D display with Chinese & English language and so on;
Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally
learn and store product’s features.Easy to operate without manual
participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to
consumer’s requirements, which can improve production efficiency
and save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless
steal ,has HACCP attestation , waterproof IP65
