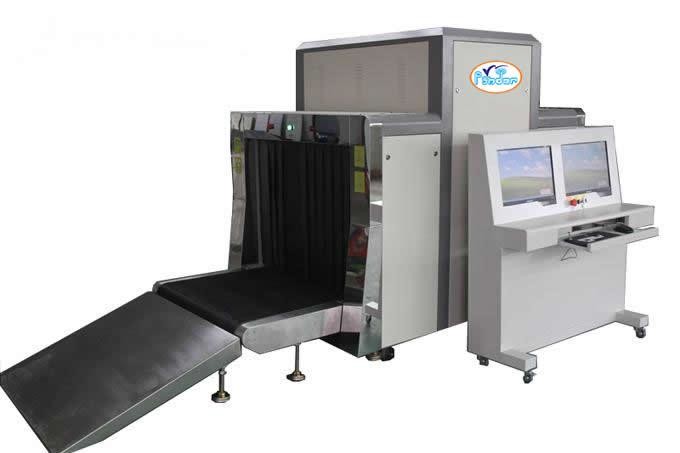

    Multi - Energy X Ray Cargo Scanner Security Inspection Machine Low Noise

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VX 150180
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Multi - Energy X Ray Cargo Scanner Security Inspection Machine Low Noise

    Multi - Energy X Ray Cargo Scanner Security Inspection Machine


    Fully designed for luggage inspection against weapons, explosives, drugs, and all other contraband. Widely used in Airports, Wearhouse, Customs, Ports and other important places.


    * Multilingual operation
    * Automatic built in test and self diagnosis
    * Secure access Key
    * Uninterruptable power supply (UPS)
    * Threat alert and material classification
    * Auto archiving
    * Network-Ready
    * Energy saving design
    * One key turn off
    * Drugs and explosives inspection
    * Indication of the date and time
    * baggage counter

    Multi - Energy X Ray Cargo Scanner Security Inspection Machine Low Noise


    • General Specifications:

    Multi - Energy X Ray Cargo Scanner Security Inspection Machine Low Noise


    Specification:


    X-ray Generator
    Ray Beam directionTop-illuminated
    Tube current0.4~1.25mA(adjustable)
    Anode voltage100~160 kV(adjustable)
    Angle90°
    Generator cooling / working periodsSealed oil bath with forced air / 100%
    Image performance system
    X-ray sensorL type photo-diode array detector(Multi-energy), 12-bit
    Monitorhigh resolution 19 inch D monitor
    Color quality24-bit real-color
    Consolefull package sealed display, connecting cables can be adjusted according
    Edge Enhancementobject contour edge is more distinct
    Super Image Enhancementimage detail is more distinct
    High-penetrate strength displayincrease brightness of dark area in image to display object which is behind high-absorptive mass distinctly
    Low-penetrate strength displayincrease contrast of low absorptive mass to display it distinctly
    Magnifierfunction of partial enlargement
    Brightening / dimmingincrease brightness of image/decrease brightness of image
    Image recurrencedisplay previous twenty images and process any one of them
    Image restorationrestore image to initial status at the time of stopping conveyor
    Image Storagereal-time store more than 100,000 images and process it in operating status
    Film safetyISO1600 film safety

    Function :

    Multi-energy function
    Multi-energy colororange--organic displays, blue--inorganic displays, green--the mixture
    High-energy / low-energyswitching display two energy , high-energy display metals, low-energy displays non-metallic
    Drugs explosives AuxiliaryAuxiliary detect drugs ,explosives and other dangerous items
    Sound and light alarmsound and light alarm signal is issued when conditions are satisfied
    Environment
    Operating temperature / humidity0℃~45℃/20%~95% (non-condensing)
    Storage temperature / humidity-20℃~60℃/20%~95% (non-condensing)
    Voltage220VAC(±10%) 50±3Hz
    Power consumption1.0KW(max)
    Noise level< 55dB (A)
    Technical parameters:
    Technical standardsTechnical parameters
    By size1000(W)×800(H)mm
    Conveyor speed0.22m/s
    Load200 kg
    Resolution∮0.0787 mm
    Penetration≥40 mm steel plate
    Through resolution0.202mm
    Spatial resolutionHorizontal diameter ≤1.0mm,Vertical diameter ≤1.0mm
    Conveyor height from the ground620mm
    MonitorBenQ 19in D Monitor
    Storage500G hard drive to save any image in real time, can store more than 100,000 and
    can make any image processing, and continuous work to save.
    Noise< 55dB(A)
    Operating systemwindowsXP
    Single check doseOne-time inspection of the X-ray light source irradiation amount ≤ 1.5µGy
    Leaking radiation dose rateAway from any device outer surface of 5cm, the ray irradiation leak rate should
    be < 0.05µGy/H
    • Package

    Packed by strong plywood carton case



    • FAQ

    1. Are you manufacturer or trader?
    We are more than 10 years experience factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team.

    2. Do you accept customer Logo and customized?
    Yes, we do kinds of customized and logo of all of our products for customers

    3. What terms of payment you usually use?
    T/T 50% deposit and 50% against document, Western Union, or negotiable.

    4. How does your factory do regarding the quality control?
    Quality is always priority. Every product will be fully assembled and carefully tested before packing and shipping. The test
    includes the appearance and the functions of the goods, the inclusion of applicable accessories and the packaging.

    5. How about your after-sales policy?
    Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
