Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material

GUANGDONG SHANAN TECHNOLOGY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material from wholesalers

    Buy cheap Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material from wholesalers
    • Buy cheap Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material from wholesalers
    • Buy cheap Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material from wholesalers

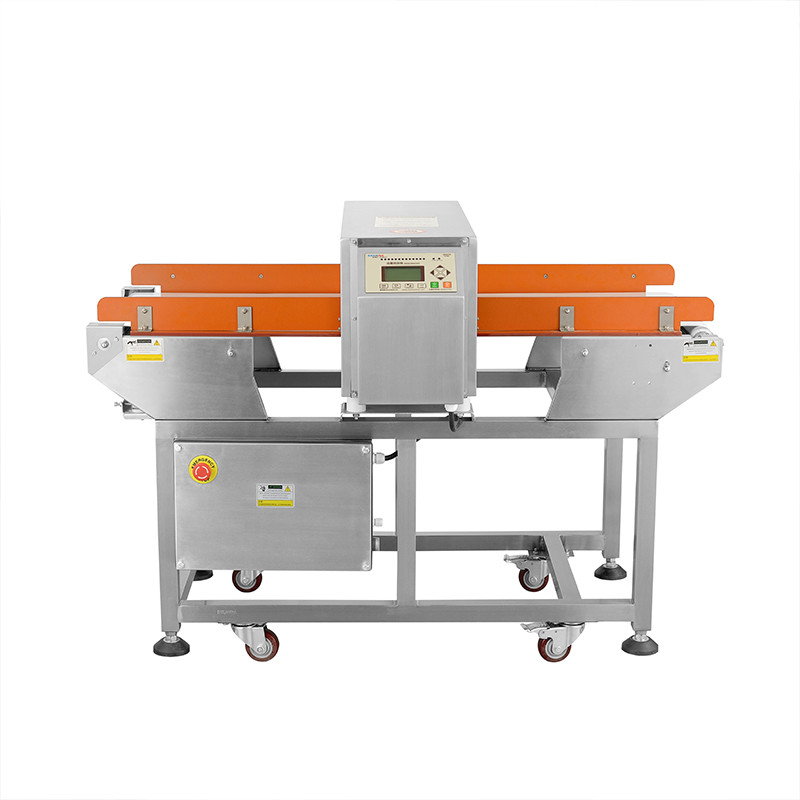

    Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : SA-5012
    Certification : CE ROHS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Waterproof Metal Detector On Conveyor Belt For Seafood SUS304 Material


    About Shanan Group.pdf


    Application: food, pharmaceutical, chemical, rubber, ice, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries to detect the metal impurities in the production process or raw materials, such as: iron, non-magnetic metal Items (silver, steel, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor and reduce hazards.


    Product features and advantages:


    Advanced technology: the introduction of imported multi-detection technology, phase and comprehensive, product and automatic balance correction technology, the detection sensitivity and stability have been improved, the detection range is wider, especially for salt, high moisture content is difficult to detect The product has 2-3 times better detection sensitivity than similar products.


    The core circuit adopts a single-chip high-performance FPGA hardware solution, using imported high-quality electronic components; [mainly selected by the United States Micro-chip, Analog Device, National Semiconductor, Wimma, Japan Hitachi, NEC, Sanyo and other companies to produce integrated circuits, capacitors, etc. Electronic components] After advanced processing technology and standardized inspection process, the product has high sensitivity and stable


    Parameter:


    Pass width (mm)600Custom non-standard
    Pass height (mm)80120150180200250300350400
    Standard detection sensitivityFE(Φmm)0.50.60.70.81.01.21.52.02.5
    NON-FE(Φmm)0.81.01.21.52.02.53.03.54.0
    SUS304(Φmm)1.01.21.52.02.53.03.54.04.5
    Belt width(mm)370370370370470470470470470
    Conveyor length(mm)133013301330133017001700170017001700
    Height of from the belt to ground(mm)650±50 can be customized
    Protection levelIP66
    Number of memory products100kinds
    Display methodLED D (or custom touch screen)
    Operation methodTouch key input (touch optional)
    Material of conveyor beltFood grade plate chain
    Alarm methodalarm shutdown, buzzer alarm or rejection mechanism optional
    Belt speed28m / min constant (variable speeds for different varieties, if you need to adjust the speed, you can customize the frequency conversion)
    Machine materialThe whole rack is made of SUS304 food grade stainless steel, which complies with HACCP, GMP, CAS and other standards
    Mechanical size (mm)1330 × 980× 1100 (length × width × height) non-standard can be customized
    Machine weightAbout 300KG
