    Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VX-10010
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life


    X-ray Luggage Scanner Inspection Systems Machine To Russia Security Equipment


    X-ray Generator


    Ray Beam directionTop-illuminated
    Tube current0.4~1.25mA(adjustable)
    Anode voltage100~160 kV(adjustable)
    Angle90°
    Generator cooling/working periodsSealed oil bath with forced air/100%

    Image performance system


    X-ray sensorL type photo-diode array detector(Multi-energy), 12-bit
    Monitorhigh resolution 19 inch D SamSung monitor
    Color quality24-bit real-color
    Consolefull package sealed display, connecting cables can be adjusted according
    Edge Enhancementobject contour edge is more distinct
    Super Image Enhancementimage detail is more distinct
    High-penetrate strength displayincrease brightness of dark area in image to display object which is behind high-absorptive mass distinctly
    Low-penetrate strength displayincrease contrast of low absorptive mass to display it distinctly
    Magnifierfunction of partial enlargement
    Brightening/dimmingincrease brightness of image/decrease brightness of image
    Image recurrencedisplay previous twenty images and process any one of them
    Image restorationrestore image to initial status at the time of stopping conveyor
    Image storingreal-time store more than 100,000 images and process it in operating status
    Film safetyfor ISO 1600

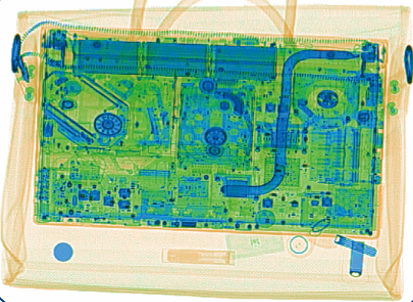

    Multi-energy function


    Multi-energy colororange--organic displays, blue--inorganic displays, green--the mixture
    High-energy / low-energyswitching display two energy , high-energy display metals, low-energy displays non-metallic
    Drugs explosives AuxiliaryAuxiliary detect drugs ,explosives and other dangerous items
    Alarm by sounds and lightalarm by sounds and light when conform to condition

    Environment


    Operating temperature / humidity0℃~45℃/20%~95% (non-condensing)
    Storage temperature / humidity-20℃~60℃/20%~95% (non-condensing)
    Voltage220VAC(±10%) 50±3Hz
    Power consumption1.0KW(max)
    Noise level< 55dB (A)
