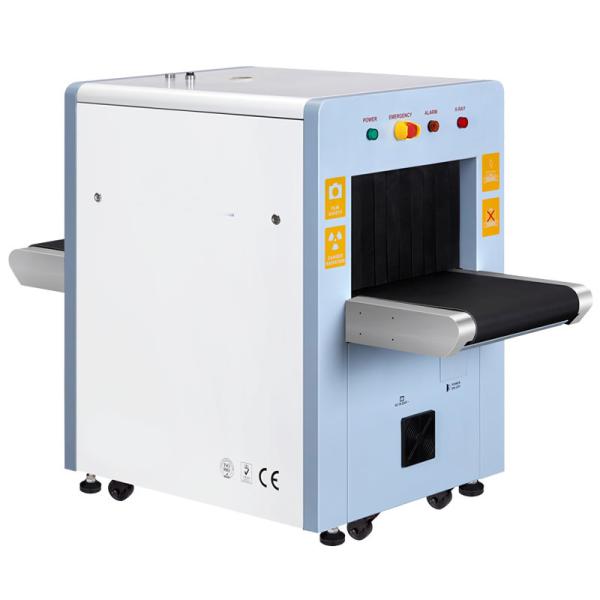

    Multi Energy Hand Bag X Ray Baggage Scanner Safety Inspection Equipments

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VX-5030C
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Multi Energy Hand Bag X Ray Baggage Scanner Safety Inspection Equipments


    Automatic Alarm Airport X-Ray Baggage Security Scanner Machines X Ray Baggage Scanning Inspection


    Product highlights


    * Multilingual operation
    * Automatic built in test and self diagnosis
    * Secure access Key
    * Uninterruptable power supply (UPS)
    * Threat alert and material classification
    * Auto archiving
    * Network-Ready
    * Energy saving design
    * One key turn off
    * Drugs and explosives inspection
    * Indication of the date and time
    * baggage counter


    Advance Technology


    • Full digital X-ray inspection system
    • Full digital signal processing
    • Strong anti-interference ability
    • Clear image

    Unique System

    • The embedded operating system
    • Multi-core ARM, simple structure
    • Low power consumption
    • Energy saving and environmetal protection
    • Real-time status monitoring function

    Image Processing System


    X-ray sensor

    L-shaped photodiode array detector (single energy), 12bit depth

    Monitor

    high resolution 19 inch D BenQ monitor

    Color image display

    24-bit true color display

    Edge Enhancement

    the outline of objects will be more clear

    Super Image Enhancement

    the details of the image are more clear

    High penetration display

    improve image contrast in bright areas, so the easy penetrating area will be more clear

    Low penetration display

    improve image contrast in dark areas, so the difficult penetrating area will be more clear

    Magnifier local

    amplification function

    Brighten / darken

    Increase / decrease image brightness

    Image pull back / front pull

    Show the top 20 images, and the current image can be any image processing

    Image Restoration

    Restored to its original state

    Image Storage

    Real-time save any image, any image can be processed arbitrarily ,continuous work to save

    By size

    500(W)×300(H)mm

    Conveyor speed

    Hour detection 600ps / h toy shoes products 0.22m/s

    Load

    150 kg

    Resolution

    ∮0.0787 mm

    Conveyor height from the ground

    700mm

    Penetration

    ≥8mm

    Monitor

    BenQ 19in D monitor

    Storage

    500G hard drive to save any image in real time, can store more than 100,000
    and can make any image processing, and continuous work to save.

    Noise

    ≤55dB(A)

    Operating system

    windowsXP

    Single check dose

    One-time inspection of the X-ray light source irradiation amount ≤ 1.22uGy

    Leaking radiation dose rate

    Away from any device outer surface of 5cm, the ray irradiation leak rate should
    be ≤ 0.12uGy / h

    Dimensions

    (L) 1750mm (W)730mm(H)1200mm

    NW / GW

    280 kg / 350 kg


    Drugs and explosive function


    The technology we use for x-ray machine detecting explosive and drug is according to:


    Explosives and drugs equivalent atomic number Zeff among 7.8.9


    Equivalent atomic number Zeff substance:


    7 = water, plastic explosive

    8 = impure drug and explosive

    9 = pure drug


    Our machine can alarm for the suspicious objects similar to the Zeff substance.

    For the scanning image, we use red line selection the meterial can't penetrate, yellow line selection the explosive, green line selection the drug.

    And the same time, the alarm LED light on the entrance of scanner will on lighting with sound.


    Applications


    Designed for small mail parcel security check, primarily serves the post Express Logistics Center of small parcel safety testing centers
