    Stainless Steel Interceptor Industrial Metal Detector Conveyor Belt 220 Voltage

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VTF-4015
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

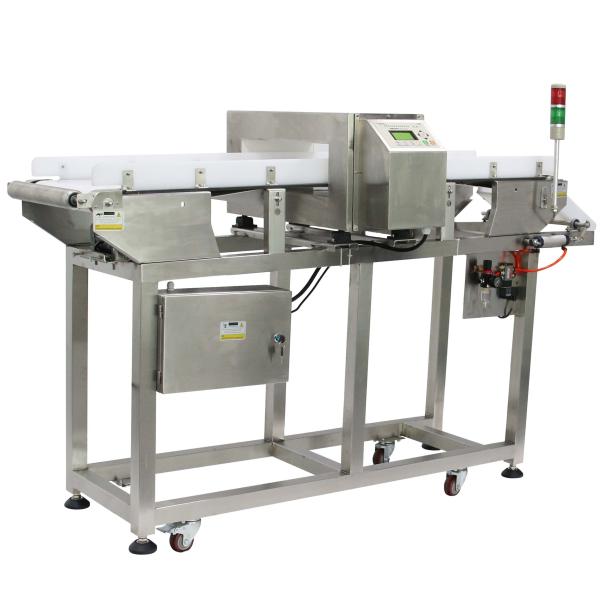

    Stainless Steel Interceptor Industrial Metal Detector Conveyor Belt 220 Voltage


    Automatic Product Tracking Stainless Steel Interceptor Metal Detectors


    The Interceptor VTF Series uses a simultaneous multi-frequency operation that effectively processes the transmission and reception of multiple frequencies continuously over a broad spectrum. This model was developed with a divergent field technology, which is the world’s first metal detector to use multiple field directions. This greatly improves the detection of ultra-thin contaminants that are often encountered in processing lines. These innovative technologies facilitate a significant improvement in detection capabilities.


    KEY FEATURES

    • Simultaneous Multi-Frequency Operation
    • Broad Spectrum Frequency Transmission
    • ARM Processors: Multiple Channel Signal Processing
    • 100% Detection Sensitivity Increase
    • Noise Immunity Structure
    • Single Pass Product “Learn”
    • Automatic Product Tracking
    • Contact Reporter Software Included

    ADVANTAGE

    ◆Can identify a variety of magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.)even if the metal embedded in the products.

    ◆Adopts the double circuit signal detection circuit, high sensitivity and strong anti-disturbance ability.

    ◆Has the double circuit signal demonstration function. When the metal good is passing, the signal light will demonstrate different induction according to the size of the metal.

    ◆Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.

    ◆Can avoid missing detection. When several metal signals are passing, the machine will automatically record the signal amount, so it won’t have missing detection.

    ◆Control system: ADLINE microprocessor controller.

    ◆Conveyors: Joint-body PU (polyurethane) Conveyor.

    ◆Special transport mechanism designed the maximize sensitivity of metal detectors.

    ◆Flexible modular design can be customized according to different requirements.

    ◆Mirror stainless steel with open transport system. Easy to clean.

    ◆Conveyer belt adopts imported white ones safe to food.

    ◆Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.


    APPLICATIONS

    • Bakery
    • Meats
    • Dairy
    • Prepared Meals
    • Packaged Products
    • Confectionery
    • Fresh Foods

    ModelVCF Chain conveyor system
    Machine specificationNormal machineCustomized width
    (mm)Detection Width400400 customized
    (mm)Detection Height100120150200250300350400
    Detection SensitivityFe(Φmm)≥0.6≥0.8≥1.0≥1.2≥1.5≥2.0≥2.5≥3.0
    Non-Fe(Φmm)≥1.0≥1.2≥1.5≥2.5≥3.0≥3.5≥4.0≥4.5
    304Sus(Φmm)≥1.2≥1.5≥2.0≥2.5≥3.0≥3.5≥4.0≥4.5
    Alarm and rejector systemAutomatic stop by alarm and sound or push rod or falling drop
    Machine structureFull structure takes of stainless 304
    Machine size (mm)L1520mm×W830mm×H1000mm if customized it will according to customized size
    Machine weightAround 250KG if customized the weight will different
    Voltage and power110v 220V or 380v 50Hz 90W
    Load ability5-25KG conveyor belt running speed :10-35m/min or customized various
    Height from the earth650mm±50mm can customized
    Note :Normal size machine have stocks. Unnormal size machine have to customized


    Note

    1. 1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.
    2. 2. Requirements for different sizes by customers can be fulfilled.
