Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening

GUANGDONG SHANAN TECHNOLOGY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening from wholesalers

    Buy cheap Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening from wholesalers
    • Buy cheap Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening from wholesalers

    Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VX5030C
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening


    Cargo X-ray Scanners With Largest Tunnel Sizes Great For Warehouses Pallet Screening And Freight


    Products advantages:


    1. With equipment to save electricity

    2. Famous brand spare parts:

    (1). Spellman brand generator from the USA

    (2). Hamamatsu brand detector from Japan

    (3). Interroll brand Roller from German

    3. Protective cover on lead curtain to avoid lead pollution

    4. Sound and light alarm

    5. Local network supported


    Key features:


    • Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
    • Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
    • Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
    • A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
    • Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
    • Strict quality internal control , double-check principles of engineering and production
    • Safeguard measures for machine parts
    • Through the testing by Ministry of public security and police use electronic product quality testing center
    • Through the EU CE certification
    • Through the ISO9001 quality management system certification
    • Through the ISO14001 environmental management system certification
    • Through the GB/T28001 occupation health and safety management system certification
    • Through thes provincial Environmental Protection Department of radiation safety certification
    • Through the provincial occupation health inspection center detection of radiation
    • Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
    • Double soft certification .

    Specification:


    X-ray Generator
    Ray Beam directionBottom-illuminated
    Tube current0.4~0.5mA(adjustable)
    Tube voltage100-160 kV(adjustable)
    Ray beam divergence angle60°
    The cooling / work cycleSealed oil cooling / 100%
    Image Processing System
    X-ray sensorL-shaped photodiode array detector (C), 24bit depth
    Monitorhigh resolution 19 inch D SamSung monitor
    Color image display24-bit true color display
    Edge Enhancementthe outline of objects will be more clear
    Super Image Enhancementthe details of the image are more clear
    High penetration displayimprove image contrast in bright areas, so the easy penetrating area will be more clear
    Low penetration displayimprove image contrast in dark areas, so the difficult penetrating area will be more clear
    Magnifierlocal amplification function
    Brighten / darkenIncrease/ decrease image brightness
    Image pull back / front pullShow the top 20 images, and the current image can be any image processing
    Image RestorationRestored to its original state
    Image StorageReal-time save any image, any image can be processed arbitrarily ,continuous work to save

    Environmental conditions:


    Operating temperature / humidity0℃~45℃/20%~95% (No condensation)
    Storage temperature / humidity-20℃~60℃/20%~95% (No condensation)
    Operating Voltage220VAC(±10%) 50±3Hz
    Power consumption1.0KW(maximum)
    Noise level<55dB (A)

    Technical parameters:


    Technical StandardsTechnical Parameters
    The channel size500(W)×300(H)mm
    Conveyor speed0.22m/s
    Load20 kg
    Resolution∮0.0787 mm
    Penetration≥40 mm steel plate
    MonitorSamsung 19in D Monitor
    Storage

    500G hard drive to save any image in real time, can store more than 100,000 and

    can make any image processing, and continuous work to save.

    Noise< 55dB(A)
    Operating systemwindowsXP
    Film SafetySafety to the ISO1600
    Leaking radiation dose rate

    Away from any device outer surface of 5cm, the ray irradiation leak rate should

    be < 0.05µGy/H

    Dimensions(L) 1750mm (W)750mm(H)1300mm
    NW / GW290 kg / 360 kg
    Application:

    Customs, port, prosecutors, prisons, railway stations, courts and other security units.

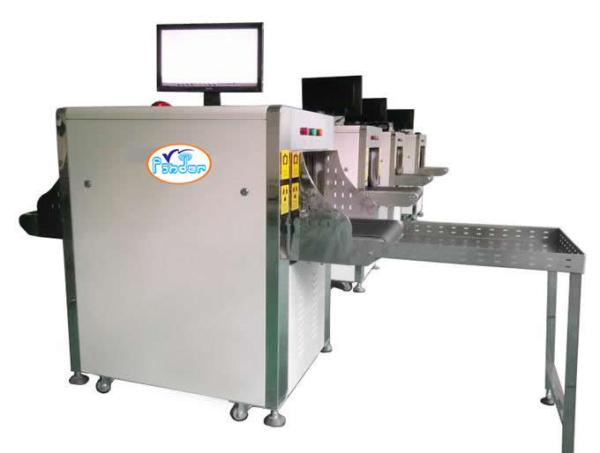

    Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening

    Company information:


    we are a professional metal detector manufacturer.
    we accept kinds of metal detector customized.
