    Online Automatic Check Weighing Machines For Packages , High Sensitive

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VC-100
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

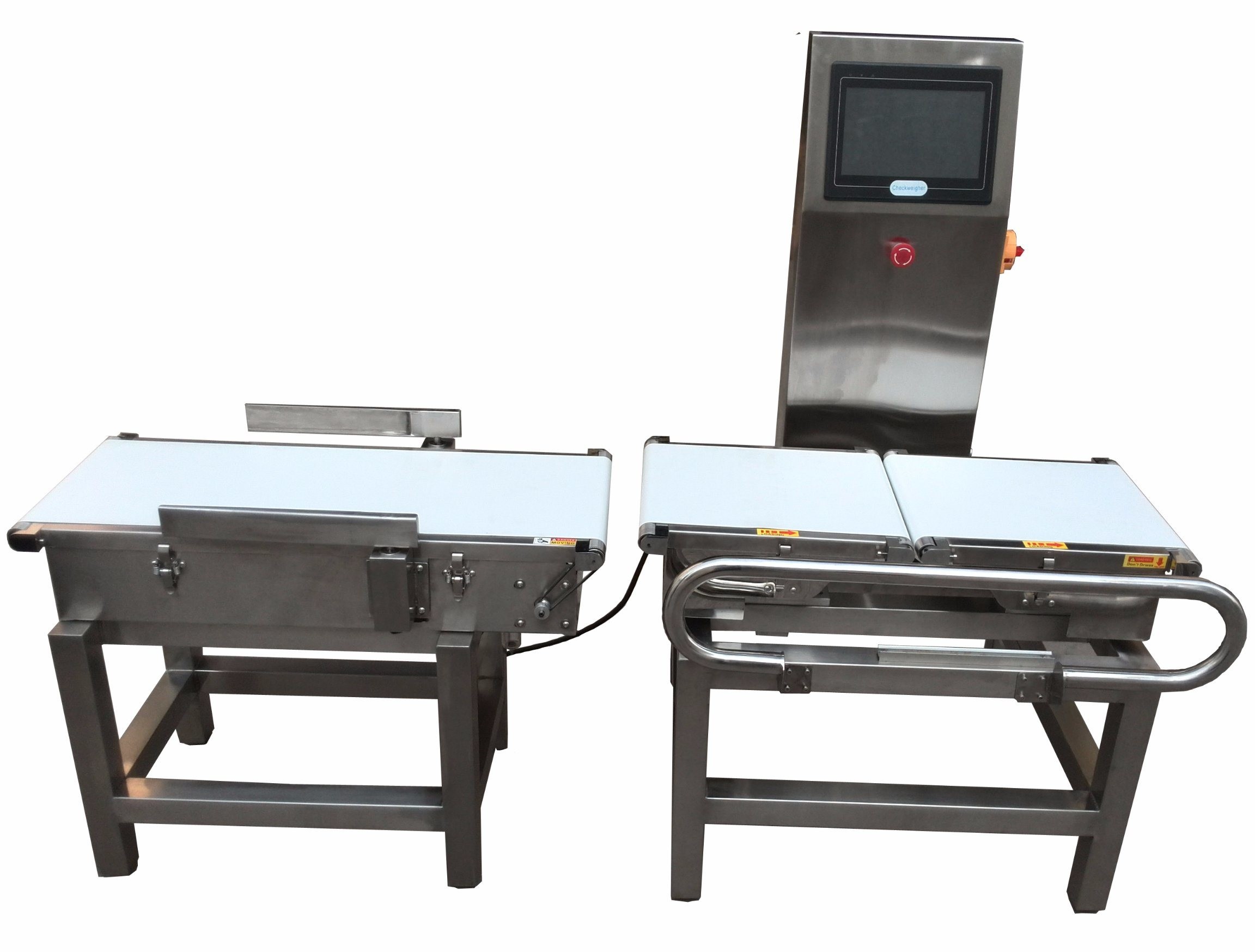

    Online Automatic Check Weighing Machines For Packages , High Sensitive


    Online Automatic Check Weighing Machines For Packages , High Sensitive


    Why you need a check weigher?

    Checkweighers have long been a key element of production operations, because they are not only weighing, but also can actually optimise your whole production process.The benefits of a

    checkweigher include:

    • Avoiding costly fines with 100% weight inspection
    • Saving materials, so as to produce more products and profits
    • Improving production processes and equipment efficiency
    • Saving labor and personnel costs
    • Reducing false rejects and rework
    • Maintaining the identity of your brand

    What's more, a checkweigher can effectively improve your overall equipment efficiency and thus reduce your total cost of ownership.


    Our check weighers' key features:


    • Reject system : arm, air blast or pneumatic pusher for selecting;
    • Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;
    • Chinese and English operating language optional​;
    • Color digitalLED touch screen, more stability and easier to operate;
    • Self-diagnosis function, when Rom/Ram, A/D light electric tube;
    • Based on advanced digital weighing technology;

    Scope of application :

    • Food
    • Chemicals
    • Automotive
    • Transport
    • Pharmaceuticals
    • Metal manufacture and fabrication industries


    About our VC series:


    The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series is designed for very heavy packages and therefore is constructed of steel channel.


    Parameter details :


    Model NameVC-10VC-15VC-22VC-30VC-40VC-25(two belt)VC-100
    Weight range (g)3-1003-30010-120030-300050-100050g-25kg1kg-100kg
    Mini weight accuracy (g)±0.1±0.3±0.5±1±0.5±5g±10g
    Mini screen value (g)0.010.10.10.10.10.51g
    Max weigh speed (Bags /Minute )203302101801805020
    Belt speed016-11813-9613-9613-9613-783-15
    (Meter/minute )
    Suitable product length (mm)-60-180mm60-300mm60-420mm60-500mm60-420mm-customized
    Suitable product width (mm)-30-150mm30-200mm30-250mm30-400mm30-380mm-customized
    Suitable product height (mm)-10-130mm10-200mm10-330mm10-330mm10-430mm-customized
    Weigh zone size (mm L*W)-270*110400*220500*300500*400800*6001000*800
    NoteNon-standard (without belt)High accuracySmall common modelCustomized modelCustomized modelCommon model for BoxRoller end belt
    Reject device optionalPin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )


    Online Automatic Check Weighing Machines For Packages , High SensitiveOnline Automatic Check Weighing Machines For Packages , High Sensitive

    Company information:


    we are a professional metal detector manufacturer.
    we accept kinds of metal detector customized.
