    High Speed Conveyor Weight Checker Light / Sound Alarm For Food Package

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VC-22
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

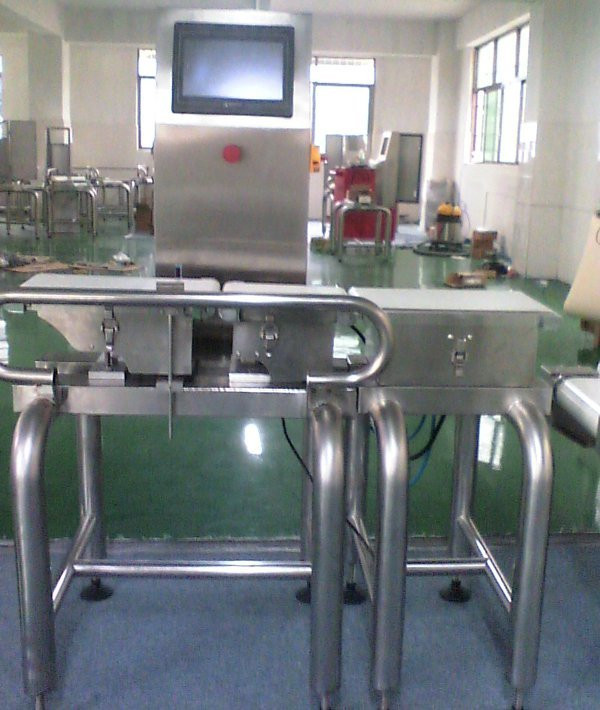

    High Speed Conveyor Weight Checker Light / Sound Alarm For Food Package


    High speed processing check checkweigher /checking weighing / Checkweigher, Online Checkweighing Machine


    Short Introduce


    Automatic checkweigher is designed to weigh, classify, and reject uniformly timed packages as they move through a packaging line. The system consists of an infeed conveyor, a weigh conveyor, and a discharge conveyor with machine-mounted reject device. The infeed conveyor is designed to accelerate products to provide the proper spacing for weighing. The weigh conveyor weighs and classifies the product into a customer-defined weight zone and transfers the product to the discharge conveyor. A machine-mounted reject device located at the discharge conveyor will remove off-weight packages, allowing only acceptable-weight packages to continue downstream.


    Application


    Package Types Cartons, bags, bars, pouches, bottles - Food,


    Pharmaceutical and Consumer products
    MicroMate Control Pillar mounted, remote up to 2 meters
    Display D Screen and Tactile Interface to view average/range format
    Motors Servo motor with speed stored in product memory
    Product Storage Up to 25 product setups, complete with speed, timer settings
    Statistics Average, standard deviation
    Weight Zones 3 (5 optional)
    Languages English
    Security Password protected
    Standard Rejecter Mechanical Push-Off
    I/O 24 VDC
    Approvals UL/CUL, ANSI B155.1-1994, EMI, RFI, ESD protected


    Parameter details :

    VC-10VC-15VC-22VC-30VC-40VC-25(Two belt)VC-100
    Model Name
    Weight range (g)3-1003-30010-120030-300050-100050g-25kg1kg-100kg
    Mini weight accuracy (g)±0.1±0.3±0.5±1±0.5±5g±10g
    Mini screen value (g)0.010.10.10.10.10.51g
    Max weigh speed (Bags /Minute )203302101801805020
    Belt speed016-11813-9613-9613-9613-783-15
    (Meter/minute )
    Suitable product length (mm)-60-180mm60-300mm60-420mm60-500mm60-420mm-
    Suitable product width (mm)-30-150mm30-200mm30-250mm30-400mm30-380mm-
    Suitable product height (mm)-10-130mm10-200mm10-330mm10-330mm10-430mm-
    Weigh zone size (mm L*W)-270*110400*220500*300500*400800*6001000*800
    NoteNon-standard (without belt)High accuracySmall common modelCustomized modelCustomized modelCommon model for BoxRoller end belt
    Reject device optionalPin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )
