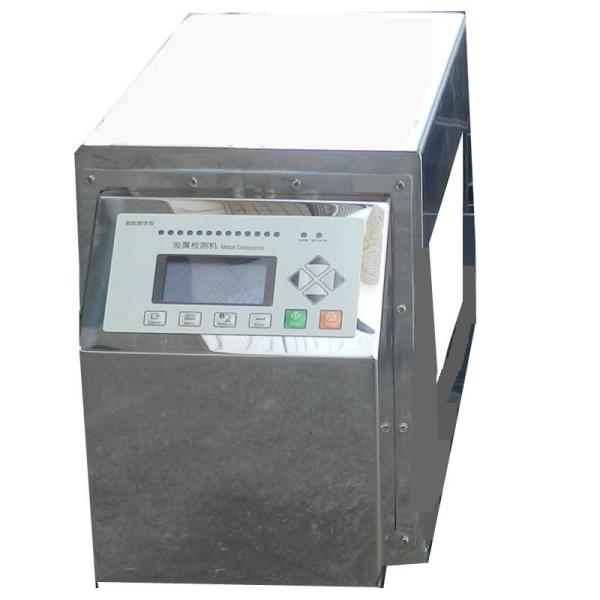

Professional Heavy Duty Metal Detector Head , Wood Chipper Metal
Detector
Applications of metal detectors
| stone pit |
| The lime plant, |
| Coal cinder |
| Sand pits, |
| Cement plant, |
| Slag processing, |
| Building material recycling, |
| Brick and tile factory, |
| Coal-fired power stations. |
• Digital signal processing:
1. Each data is controlled by a microprocessor.
2. The digital circuit realizes signal processing, easy to adjust,
stable and reliable.
3. In order to stop errors in advance in transmission and
reception, the detector handles many operations.
4. It is easy to adjust the detection parameters.
Detection signal shall be sent out when metal signal is detected,
and then the elimination device shall eliminate the object with
metal impurities or send out sound-light alarm stop signal.
Function
1. one-line signal display.
When the metal is passed, the signal level indicator should show
the different induction intensity according to the size of the
metal.
2. Memory function for registering various products (Max. 12 Items).
3. High immunity against vibration & product metal effect
The operator can check whether the detector is in accordance with
the product characteristics, whether the detector can be detected
smoothly, and not to be misoperated by large impact or vibration.
4. Chinese & English operating menu
The D display is displayed in English and Chinese. The interface
between the Multi Country personnel and the detector is easy.
5. Extremely simple to install.
6. Iron oxide and ore are ignored
7. Both ferrous and non-ferrous metals are detected
8. Automatic self-monitoring
9. Probe and amplifier solidly built for immunity to vibration and
therefore resistant to weather, dirt and impact of stones
Technical parameters:
| Model | VMS-3 |
| Machine specification | Normal machine | Customized width |
| (mm)Detection Width | 400 | 400 customized |
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm and rejector system | Alarm by sound and light.automatic control signal output |
| Machine structure | Full structure takes of stainless 304 |
| Machine weight | Around 100KG if customized the weight will different |
| Voltage and power | 110V-220V 50Hz 90W |
| Note :Normal size machine have stocks. Unnormal size machine have
to customized |
Install
The probe consists of 2 probe panels, one fitted under the belt and
the other above the belt by means of spacers. It is quick and easy
to install at the conveyor belt.
Certificate
Company introduction
Guangdong Shanan Technology Co., Ltd. ls speciaizing in metal
testing equipment, weight testing equipment, X-ray foreign
objecttesting equipment, clothing toys, footwear industny needle
detection equipment, security X-ray machine, security door,
explosivedetector, explosion-proof tank, High-tech companies that
provide liquidation detectors, vehicle bottom detectors, vehicle
inspectionmirors, metal detectors, and other products for the
development, production, and sales of imported inspection
equipmentand services. With extensive experience in the industry's
melal impurity removal and public safety scope testing, we can
provide publicsafety inspeclions for high-end demanders from
professional manufaclurers of Manzhu. The United States Shanan
Technology GroupCo., Ltd., has Guangdong Shanan Technology Co. td,
and Guangdong Haiman Testing Equipment Co., Ltd., Tailor-made
solutions foicustomers. ihrough vears of meliculous service and
inteonly manacement, as wel as ciose and fiendlv cooperalion with
acenis, wehave established a good reputation in the industry. Help
customers meet HACCP, FDA and other certificalion requirements and
healthstandards to protect customer brand imaae and improve
customer productivity and oroduction quality.
