Professional Heavy Duty Metal Detector Head , Wood Chipper Metal
Detector
Applications of metal detectors:
| Quarries, |
| Lime works, |
| Clinker works, |
| Sand pits, |
| Cement factories, |
| Slag processing, |
| Building material recycling, |
| Brickworks, |
| Coal-burning power stations. |

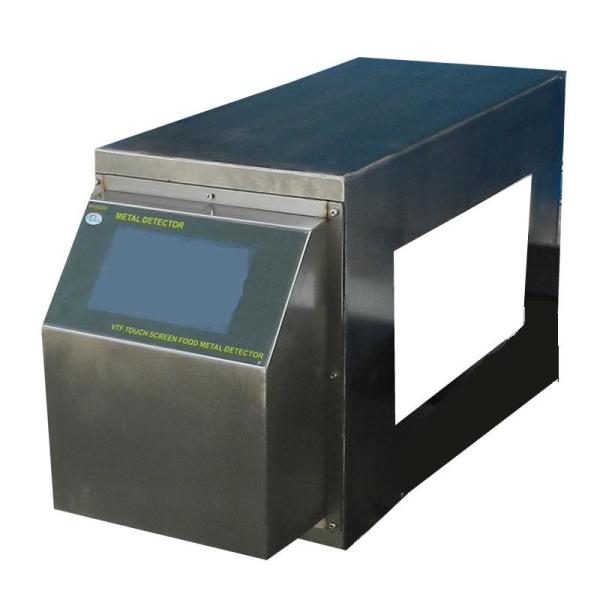

Metal detector head
The majority of metal detectors used in the food industry are
balance coil systems. The system
generates a field which illuminates any metal particles present
which in turn can be detected. Metal detection heads can be of
various shapes and sizes depending on the product which passes
through the opening in the head or aperture. When metal is detected
by the head a signal is sent to a control system designed to alert
personnel and remove the product from the flow. Whichever system is
used it must have the capability of detecting ferrous, non-ferrous
and stainless steel. For foil
packed products or similar metalized films an appropriate system
will be required
Transport system :
The system employed passes product through the head aperture. The
main types of
Belt conveyor metal detection systems based on the means of
transport: Conveyor Mounted
We usually have two optional of the transportation belt :
Normal conveyor belt
Chain modular conveyor belt
Rejection system:
Following the detection of metal an automatic reject system is
often used to remove the contaminated product. Various methods are
used depending on the product and transport system and include:
· Push arm
· Air blast
· Drop Flat
· Value divert
Install Location
Belt Conveyor mounted systems are usually located at the end of the
line or as close to the end of the
line as practical. A continuous conveyor runs through the aperture
carrying with it product packs
or units. Each is checked individually and rejected if metal is
detected. The sensitivity of the detection head is important in
determining the type and size of metal pieces detected.
Sensitivity Requirements
The equipment must achieve the following:
· Sensitivity must be stable and require infrequent adjustment
· Not reject good product or provide false positive results
Technical parameters:
| Model | VMS-3 |
| Machine specification | Normal machine | Customized width |
| (mm)Detection Width | 400 | 400 customized |
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm and rejector system | Alarm by sound and light.automatic control signal output |
| Machine structure | Full structure takes of stainless 304 |
| Machine weight | Around 100KG if customized the weight will different |
| Voltage and power | 110V-220V 50Hz 90W |
| Note :Normal size machine have stocks. Unnormal size machine have
to customized |
Install
The probe consists of 2 probe panels, one fitted under the belt and
the other above the belt by means of spacers. It is quick and easy
to install at the conveyor belt.
