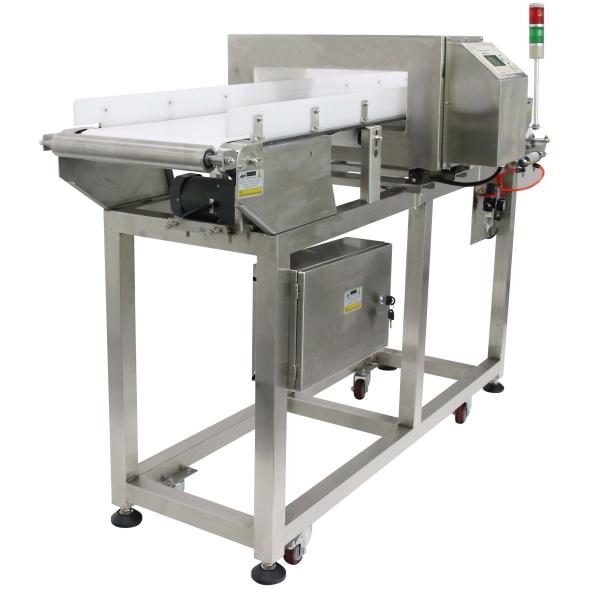

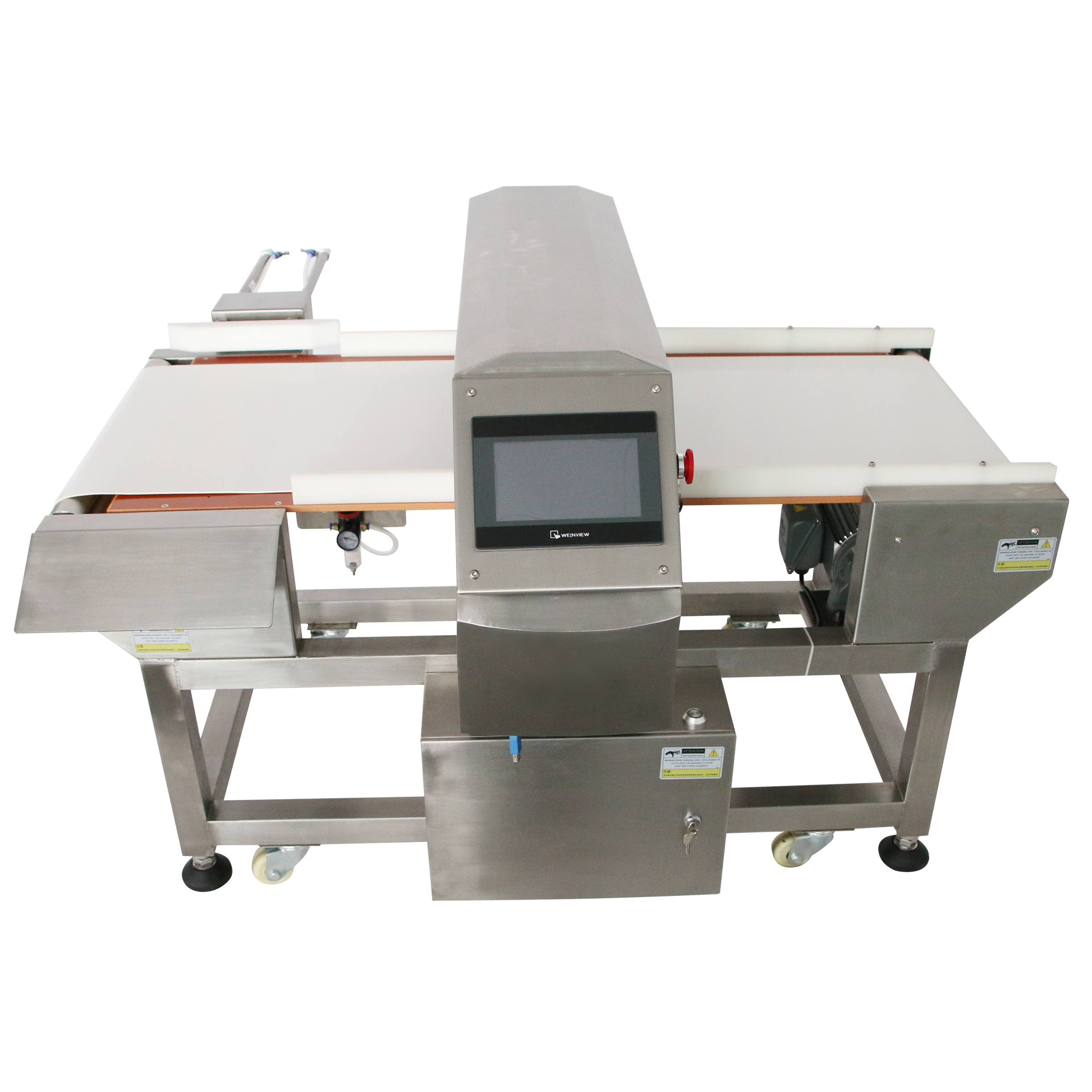

Auto conveyor inclined metal detector / food grade metal detector
with conveyor
About
Shanan.pdf
ADVANTAGES
1. High Stability
2. High Sensitivity
3. Low Maintenance
4. Custom Made
FEATURES
1. Digital signal processing technology
2. High Sensitivity to all metals
3. Multi-Functional Operation Interface
4. Multi-Frequencies for option
5. Advanced product auto-learn function
6. Memory 12 or 100 different types of products
7. Stainless Steel Structure meet HACCP requirement
8. Simple and easy maintenance conveyor
9. Optional Chinese/English/ Korean /Japanese Language available
10. Optional Multi-Rejector System
APPLICATION
1. Designed for detecting all kinds of metals in food,
pharmaceutical products such as quick-frozen food, dehydrated
vegetables, meat, cooked food, sauce, seafood etc.
2. Designed for detecting all kinds of metals in chemical, rubber,
tobacco products etc.
3. Designed for keeping equipment safe to avoid equipment broken by
metals.
SPECIFICATION
Model No. VIF-Inclined
Detection Method Balanced Coil
Aperture Size 100-1000(mm) width*80-600mm Height optional
Max. Detection Width 100-1000mm
Max. Detection Height 80-60mm
Sensitivity without product effect Fe 0.5 mm; Non-Fe 3.8mm; SUS304
4.0mmV Customized according to different size
Length of Conveyor 1840MM
Height of Conveyor Infeed Height:330mm; Outfeed Height:1078mm
Belt Width 410mm
Belt Speed 20m/min
Alarm Method Beeper and Stop
Power Source AC220V7% ; 50Hz; 1P
Dimension 1840x910x1290mm
Weight 260kg
What can a be detected?
Almost all metal detectors in the food industry are able to detect
three core groups of metal contaminants:
Ferrous metals are easily detected as they are both magnetic and
conductive
Non-Ferrous metals are non-magnetic but are strong conductors and
are therefore easily detected.
Stainless steel contaminants are perhaps the toughest to pick up
because of their poor conductivity and non-magnetic. However, most
reliable metal detectors designed for food production will be able
to detect these contaminants.
Generally, there are four types of metal detectors that are popular
within the food industry:
Search Heads are used frequently for inspection of fruits,
vegetables, cereals, meats and bread.
Conveyor based Systems are used frequently for inspection of
fruits, vegetables, cereals, meats, yogurt and bread.
Pipeline for Pumped Products are used frequently for beverages,
sauces, soups and dairy.
Vertical Fall Systems are used frequently for powders, grains and
granules.
Sensitivity reference
Details Tunnel size | 40*12cm | 40*15cm | 40*20cm | 50*15cm | 50*20cm | 50*25cm | 50*30cm |
| Sensitivity Fe(mm) | 0.8 | 1.0 | 1.2 | 1.0 | 1.2 | 1.5 | 2.0 |
| Sensitivity SUS(mm) | 1.5 | 2.0 | 2.5 | 2.0 | 2.5 | 3.0 | 3.5 |
| Detection height | 120 | 150 | 200 | 150 | 200 | 250 | 300 |
| Detection width | 400 | 500 |
| Belt speed |
10-35 meters per minute adjustable |
| Alarm method | Light and sound and optional reject |
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
