High Sensitivity Metal Detector Food Used Conveyor Metal Detector
Price
Product advantages:
About
Shanan.pdf
◆ Mechanism exported from Germany, Dual-channel metal detection
system. Coil with a rectangular aperture (no points).
◆ Control system: ADLINE microprocessor controller.
◆ Conveyors: Joint-body PU (polyurethane) Conveyor.
◆ Combined with two-way signal detection circuit technology, liquid
crystal display operations in English and visualization.
◆ Has the adjustment function of products effect, such as moist
products, products including sugar or salt, they all can make the
machine has the signal of metal, which is actually has no metal, so
it gets wrong information from the products and affect the
detection result. So use this machine with this function can reduce
the products’ effect to get better detection result.
◆ With memory and learning function, can store 100kinds of product
testing parameters, detecting a wide range of materials.
◆ Completed by the digital signal processing circuit can detect all
metal objects, adjusting the simple, stable and reliable.
◆ The combination of DSP and microcontroller data items on the test
sample and treatment to improve detection.
◆ Special transport mechanism designed the maxi-Mize sensitivity of
metal detectors.
◆ Flexible modular design can be customized according to different
requirements.
◆ Mirror stainless steel with open transport system. Easy to clean
.
◆ Meet the requirements of IFS and HACCP certification. There are a
variety of options excluded institutions depending on the
application.
◆ With superior shock interference.
Detail Specification
| Model | VDF series |
| Machine specification | Normal machine | Customized width |
| (mm)Detection Width | 400 | 300 customized |
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop |
| Machine structure | Full structure takes of stainless 304 |
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to
customized size |
| Machine weight | Around 250KG if customized the weight will different |
| Voltage and power | 220V 50Hz 90W |
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized
various |
| Height from the earth | 650mm±50mm can customized |
| Note :Normal size machine have stocks. Unnormal size machine have
to customized |

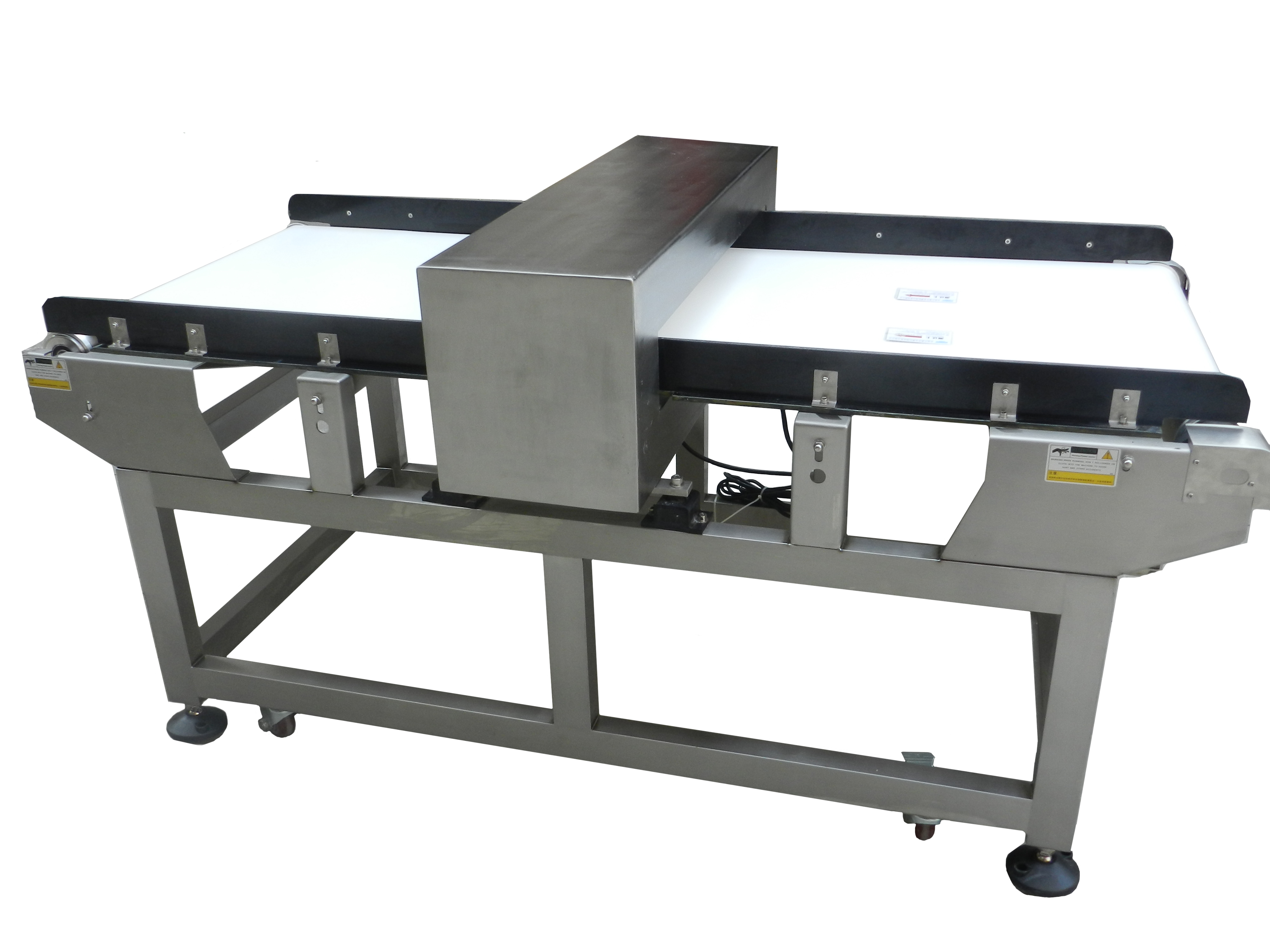

Real machine picture
Factory show room picture
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
