    Digital Stainless Steel Food Grade Metal Detector With Open Transport System

    Ask Lasest Price
    Brand Name : SHANAN
    Model Number : VDF
    Certification : CE, ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 set/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Digital Stainless Steel Food Grade Metal Detector With Open Transport System


    High Sensitivity Food Industry Metal Detector Digital Stainless Steel Food Metal Detector


    About Shanan.pdf


    Product advantages:


    ◆ Mechanism exported from Germany, Dual-channel metal detection system. Coil with a rectangular aperture (no points).


    ◆ Control system: ADLINE microprocessor controller.


    ◆ Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.


    ◆ Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.


    ◆ With memory and learning function, can store 100kinds of product testing parameters, detecting a wide range of materials.


    ◆ The combination of DSP and microcontroller data items on the test sample and treatment to improve detection.


    ◆ Special transport mechanism designed the maxi-Mize sensitivity of metal detectors.


    ◆ Flexible modular design can be customized according to different requirements.


    ◆ Mirror stainless steel with open transport system. Easy to clean .


    ◆ With superior shock interference.


    Detail Specification


    ModelVDF series
    Machine specificationNormal machineCustomized width
    (mm)Detection Width400300 customized
    (mm)Detection Height100120150200250300350400
    Detection SensitivityFe(Φmm)≥0.6≥0.8≥1.0≥1.2≥1.5≥2.0≥2.5≥3.0
    Non-Fe(Φmm)≥1.0≥1.2≥1.5≥2.5≥3.0≥3.5≥4.0≥4.5
    304Sus(Φmm)≥1.2≥1.5≥2.0≥2.5≥3.0≥3.5≥4.0≥4.5
    Alarm and rejector systemAutomatic stop by alarm and sound or push rod or falling drop
    Machine structureFull structure takes of stainless 304
    Machine size (mm)L1520mm×W830mm×H1000mm if customized it will according to customized size
    Machine weightAround 250KG if customized the weight will different
    Voltage and power220V 50Hz 90W
    Load ability5-25KG conveyor belt running speed :25-30m/min or customized various
    Height from the earth650mm±50mm can customized
    Note :Normal size machine have stocks. Unnormal size machine have to customized

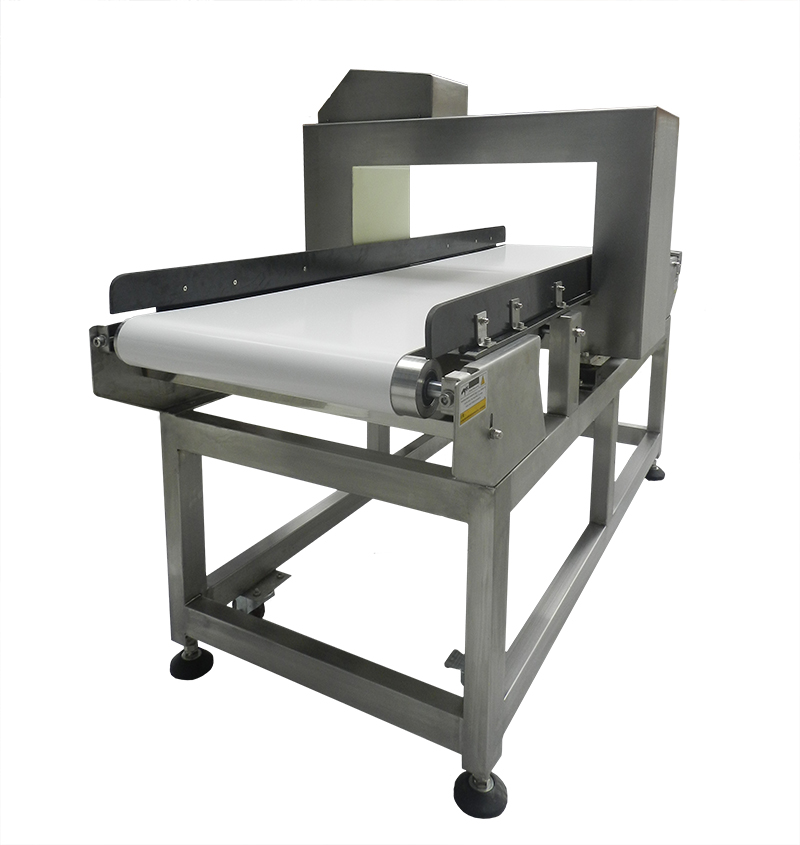

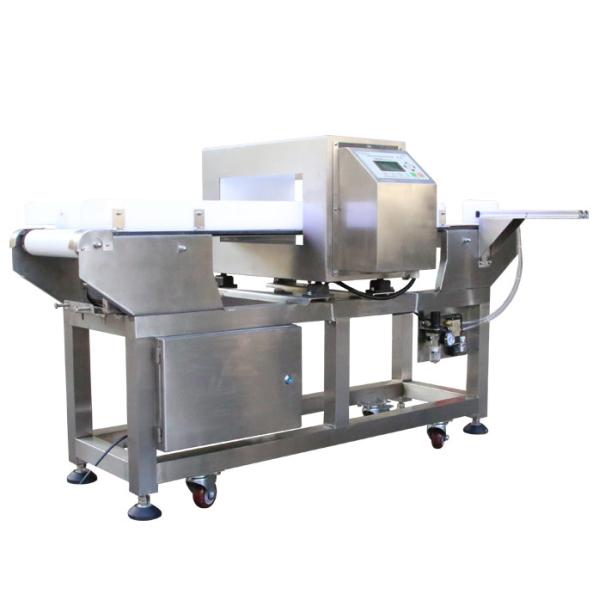

    Real machine picture


    Factory show room picture


    Optional reject 1 :Push rod


    Optional 2 flap drop


    Optional 3 Air blast
